| Place of Origin: | Wuxi, China |
| Brand Name: | WEIFU |
| Certification: | ISO9001, IATF16949 |
| Model Number: | SCR |
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons and plywood cases |
| Delivery Time: | 30-60 days after receiving the deposit |
| Payment Terms: | T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Supply Ability: | 240,000 PCS per year |
| Product Name: | Scr Denox Catalyst | Material: | Ceramic |
|---|---|---|---|
| Shape: | Round, Square | Size: | Can Be Customized |
| Cell Density: | 40/75/100/200/300/400/600 CPSI | Application: | Diesel Enigne |
| Model: | Universal | Emission Standard: | Euro 4/5/6 |
| Type: | Cu Zeolite Catalysts | ||
| High Light: | Copper Zeolite Scr Catalyst 40 CPSI,Scr Catalyst Replacement 40 CPSI,cu zeolite catalysts |
||

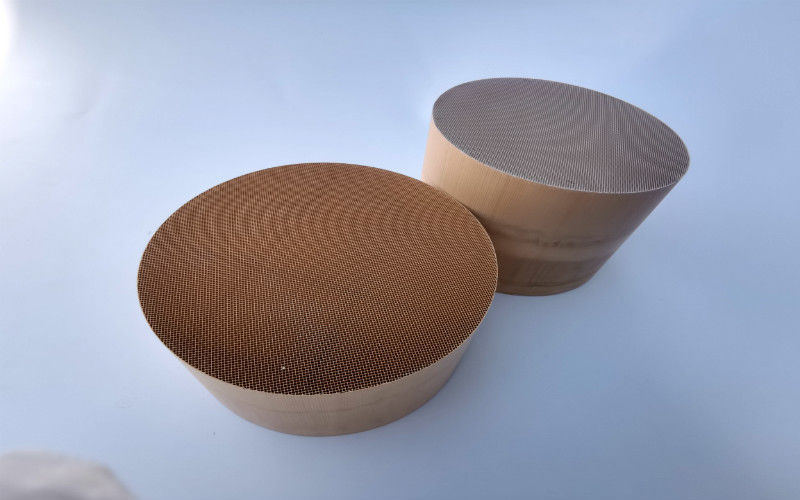

SCR NOx Control Catalyst for Diesel Engine Fe/zeolite Cu/Zeolite Vanadium
SCR Catalyst (NOx Control Catalyst)
In the presence of an SCR catalyst, the ammonia is able to react selectively with the nitrogen oxides in the exhaust gas to form nitrogen and water. For efficient NOx reduction, adequate dosing of urea solution to form ammonia in the exhaust gas is necessary.
Advantages:
| Item | Advantage |
| 1 | Low pressure drop |
| 2 | High surface area |
| 3 | Good consistency water absorption |
| 4 | Low thermal expansion coefficient |
| 5 | Good heat shock resistance and heat vibration resistance |
| 6 | Ideal matching with various active catalyst components |
Features
WFEC has developed SCR catalysts for meeting NOx emission control both of mobile and stationary applications. Depending on different application scene, WFEC can provide matched wash-coated products including Fe/zeolite (450~620 oC), Cu/Zeolite (190~550 oC), vanadium-based metal oxides (230~470 oC) and Mn-containing oxide catalysts (130~250 oC).
Applications
Boilers / Turbines
Diesel engine emissions
Engine systems for vessels
Industrial processes
Others (iron and steel making, coking plant and cement manufacturing)
Specifications
Square honeycomb SCR w/ or w/o NH3-slip catalyst
---Cell desity:40/75/100/200/300 cpsi
---Size:150*150*100/150/200/250/300/400mm
Cylindrical honeycomb SCR w/ or w/o NH3-slip catalyst
---Cell desity: 300/400/600 cpsi
---Size:(ϕ143.8~330.2mm)*(101.6~177.8mm)
Customer customization
| Specification | Diameter (mm) | Length (mm) | Cell Density (CPSI) | Emission Standard |
| Ø130*130 | 130 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*95 | 143.8 | 95 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*152.4 | 143.8 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*200 | 143.8 | 200 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø172*101.6 | 172 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø172*127 | 172 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190*100 | 190 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190*150 | 190 | 150 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*76.2 | 190.5 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*101.6 | 190.5 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*127 | 190.5 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*152.4 | 190.5 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø228.6*203.2 | 228.6 | 203.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*50 | 240 | 50 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*76.2 | 240 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*100 | 240 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*130 | 240 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*152.4 | 240 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*160 | 240 | 160 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*190 | 240 | 190 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*101.6 | 241.3 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*127 | 241.3 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*152.4 | 241.3 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*177.8 | 241.3 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø263*127 | 263 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*76.2 | 266.7 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*101.6 | 266.7 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*127 | 266.7 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*152.4 | 266.7 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø286*120 | 286 | 120 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø304.8*101.6 | 304.8 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø304.8*120.65 | 304.8 | 120.65 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*101.6 | 330.2 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*127 | 330.2 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*152.4 | 330.2 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*177.8 | 330.2 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Remark: | Other sizes can be customized according to customer requirements. | |||
