| Place of Origin: | Wuxi, China |
| Brand Name: | WEIFU |
| Certification: | ISO9001, IATF16949 |
| Model Number: | DPF |
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons and plywood cases |
| Delivery Time: | 30-60 days after receiving the deposit |
| Payment Terms: | T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Supply Ability: | 200,000 PCS per year |
| Product Name: | Diesel Particulate Filter Replacement | Material: | Cordierite, SiC |
|---|---|---|---|
| Shape: | Round, Square | Size: | Can Be Customized |
| Cell Density: | 100/200/300/350 CPSI | Application: | Diesel Engine Exhaust System |
| Vehicle Model: | Diesel Engine | Emission Standard: | Euro 5, Euro 6 |
| Type: | Car Parts Dpf Diesel Particulate Filter Regeneration Passive Euro 6 Catalyst 228x228mm | ||
| High Light: | Car Parts Dpf Diesel Particulate Filter,Dpf Diesel Particulate Filter Regeneration Passive Euro 6,Euro6 Catalyst |
||

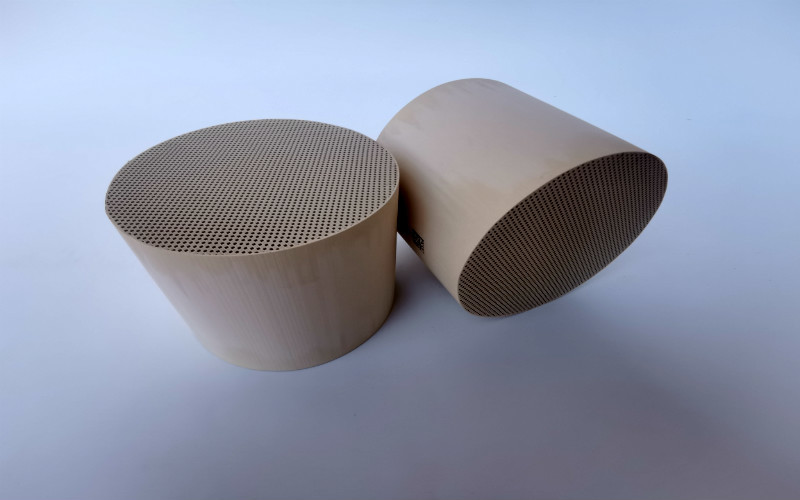

DPF Diesel Particulate Filter for Diesel Vehicles Cordierite/SiC Substrate Euro 5/6
DPF (Diesel Particulate Filter)
DPF (Diesel Particulate Filter) Technology
DPF Substrate Parameters:
| Material | SiC-1 | SiC-2 | Cordierite-1 | Cordierite -2 |
| Porosity | 41% | 42% | ~52% | ~50% |
| Average pore diameter | 11um | 11um | ~13um | ~18 µm |
| CPSI/wall thickness | 300/12 | 350/11 | 300/9 | 300/9 |
DPF (Diesel Particulate Filter) Development:
To meet China Stage VI / Euro 6 and above emission regulations, WFEC has developed the catalysts and coating process technology for DPFs. The catalyst coated in the pores of the filter wall can improve passive regeneration to extend regeneration intervals and cut the fuel cost, as well as the reduction of HC and CO. The CDPFs with lower back pressure and better catalytic activity can be applied to various diesel vehicles.
| Specification | Diameter (mm) | Length (mm) |
Cell Density (CPSI) | Emission Standard |
| Ø143.8*152.4 | 143.8 | 152.4 | 200/300 | Euro 5, Euro 6 |
| Ø143.8*177.8 | 143.8 | 177.8 | 200/300 | Euro 5, Euro 6 |
| Ø143.8*200 | 143.8 | 200 | 200/300 | Euro 5, Euro 6 |
| Ø143.8*203.2 | 143.8 | 203.2 | 200/300 | Euro 5, Euro 6 |
| Ø152.4*304.8 | 152.4 | 304.8 | 200/300 | Euro 5, Euro 6 |
| Ø160*100 | 160 | 100 | 200/300 | Euro 5, Euro 6 |
| Ø165*130 | 165 | 130 | 200/300 | Euro 5, Euro 6 |
| Ø170.2*203.2 | 170.2 | 203.2 | 200/300 | Euro 5, Euro 6 |
| Ø172*152.4 | 172 | 152.4 | 200/300 | Euro 5, Euro 6 |
| Ø190.5*203.2 | 190.5 | 203.2 | 200/300 | Euro 5, Euro 6 |
| Ø190.5*304.8 | 190.5 | 304.8 | 200/300 | Euro 5, Euro 6 |
| Ø215.9*304.8 | 215.9 | 304.8 | 200/300 | Euro 5, Euro 6 |
| Ø228*228 | 228 | 228 | 200/300 | Euro 5, Euro 6 |
| Ø228*304.8 | 228 | 304.8 | 200/300 | Euro 5, Euro 6 |
| Ø230*152.4 | 230 | 152.4 | 200/300 | Euro 5, Euro 6 |
| Ø240*304.8 | 240 | 304.8 | 200/300 | Euro 5, Euro 6 |
| Ø241.3*304.8 | 241.3 | 304.8 | 200/300 | Euro 5, Euro 6 |
| Ø266.7*152.4 | 266.7 | 152.4 | 200/300 | Euro 5, Euro 6 |
| Ø266.7*215 | 266.7 | 215 | 200/300 | Euro 5, Euro 6 |
| Remark: | Other sizes can be customized according to customer requirements. | |||
