150x150mm Ozone Removal Catalyst VOC Odor Treatment Catalyst

150x150mm Ozone Removal Catalyst VOC Odor Treatment Catalyst

  • 150x150mm Ozone Removal Catalyst VOC Odor Treatment Catalyst
150x150mm Ozone Removal Catalyst VOC Odor Treatment Catalyst
Product Details:
Place of Origin: Wuxi, China
Brand Name: WEIFU
Certification: ISO9001, IATF16949
Model Number: VOC
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiable
Packaging Details: cartons and plywood cases
Delivery Time: 30-60 days after receiving the deposit
Payment Terms: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Supply Ability: 180,000 PCS per year
Contact Now
Detailed Product Description
Product Name: Voc Elimination Catalyst Material: Ceramic, Metal
Shape: Square Size: Can Be Customized
Cell Density: 75/100/200 CPSI Application: Industrial / Stationary / Petro-chemical Emission
Type: 150x150mm Ozone Removal Catalyst VOC Odor Treatment Catalyst
High Light:

150x150mm Ozone Removal Catalyst VOC

,

150x150mm Ozone Removal Catalyst

,

decomposition of ozone catalyst

VOCs Industrial & Stationary & Petro-chemical Emission Catalyst Ceramic/Metal Square



VOC Catalyst (Industrial & Stationary & Petro-chemical Emission Catalyst)





VOC Catalyst Chemical Reactions:

  • CO + 0.5 O2 àCO2
  • THC + O2 à CO2 + Water
  • NOx + NH3 à N2 + Water
  • NH3 + O2 à N2 + Water ( + NOx)



VOC Catalyst Design:



Input Output
   1. Exhaust composition
   2. Exhaust flow and temperature
   3. Engineering target
   4. Back pressure requirements
   5. Installation space and requirements
   1. Catalyst type
   2. Substrate type and geometry
   3. Cell density
   4. Catalyst solution
   5. Back pressure



Continuously monitor and evaluate our products and processes, and ensure continuous improvement through close cooperation with R&D, process, quality, and marketing.

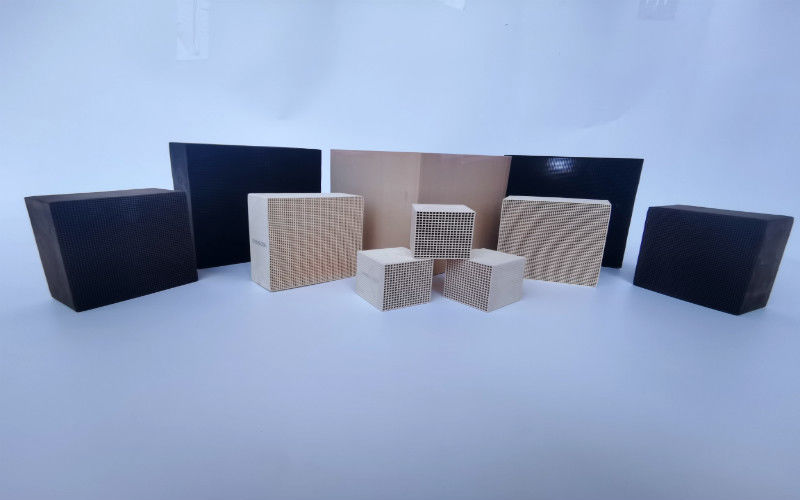

Choice of VOC Catalyst Substrate:





No. Type of Substrate Image Features
      1 Square cordierite honeycomb ceramic substarte   150x150mm Ozone Removal Catalyst VOC Odor Treatment Catalyst 0
  • Common size: 100*100mm or 150*150mm
  • Length: 50, 100 ,150, 200mm
  • Cell density: 50-400 CPSI
  • Can be canned into various types of modules
     2 Square metal honeycomb substrate   150x150mm Ozone Removal Catalyst VOC Odor Treatment Catalyst 1
  • Unique section size
  • Length: 50, 75, 100,150,200mm
  • Cell density: 16-600 CPSI
  • Low back pressure/high specific surface area (alternative to ceramic modules)
     3 Cylindrical cordierite honeycomb substrate   150x150mm Ozone Removal Catalyst VOC Odor Treatment Catalyst 2
  • Diameter: 83-330mm
  • Length: 76.2, 90, 120, 152.4mm
  • Cell density: 100-600 CPSI
  • Standard size is conducive to fast supply, customized size is for customized solutions





VOC Catalyst Introduction:



Volatile organic compounds (VOCs) are one of the environmental pollutants. There are many types of VOCs. Outdoor VOCs mainly come from chemical production and automobile exhaust emissions, and indoor ones are mainly from construction and decoration materials. While VOCs are released into the air, they will destroy the ozone layer and produce photochemical smog, and cause great harm to human health. At present, the main treatment processes are adsorption, thermal incineration, plasma, photocatalysis and catalytic oxidation, etc. Besides, treatment methods of multi-process combinations have been applied.



While there are many methods to abate VOC emissions, catalytic incineration has become one of the most famous choices because it can be more versatile and economical than other approaches. WFEC has been developing highly active and robust catalysts and related technologies for the reduction of volatile organic compounds (VOCs). WFEC catalysts control emissions of hydrocarbons (HCs) and other VOCs from a wide variety of industrial processes. They help customers meet increasingly stringent emissions standards reliably and cost-effectively.



Our solutions include CO oxidation catalysts (CO catalysts) to remove carbon monoxide (CO), VOC catalysts (VOC oxidation catalysts) to remove Volatile Organic Compounds (VOC), SCR catalysts (Selective Catalytic Reduction catalysts) to remove NOx (nitrogen oxides).
