| Place of Origin: | Wuxi, China |
| Brand Name: | WEIFU |
| Certification: | ISO9001, IATF16949 |
| Model Number: | Diesel Engine Catalyst |
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons and plywood cases |
| Delivery Time: | 30-60 days after receiving the deposit |
| Payment Terms: | T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Supply Ability: | 1,200,000 PCS per year |
| Product Name: | Diesel Engine Combustion Catalyst | Material: | Ceramic, Metal |
|---|---|---|---|
| Shape: | Round, Square | Size: | Can Be Customized |
| Cell Density: | 200/300/400 CPSI | Application: | Diesel Engine |
| Model: | Universal | Emission Standard: | Euro 4, Euro 5, Euro 6, Tier 3, Tier 4, EPA3 |
| Type: | 40CPSI SCR Doc Catalyst Diesel Engine Metallic Honeycomb Wash Coat NOx Control | ||
| High Light: | 40CPSI SCR Doc Catalyst,40CPSI Doc Catalyst Diesel Engine,catalyst washcoat process |
||

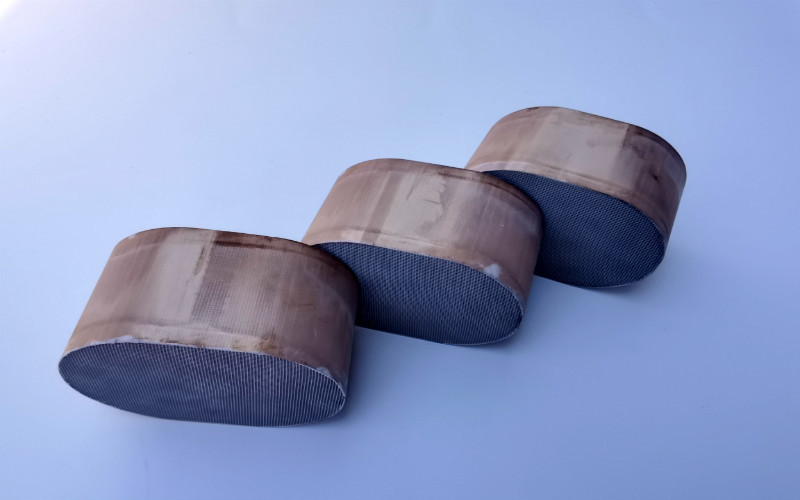

Diesel Engine Catalyst Ceramic/Metal/Wire-mesh After-treatment System
Diesel Engine Catalyst
SCR (Selective Catalytic Reduction Catalyst):
Product Name: SCR Catalyst (NOx Control Catalyst)
Material: ceramic
Shape: round, square
Size: can be customized
Cell Density: 40/75/100/200/300/400/600 CPSI
Application: diesel engine
Car Model: universal
Emission Standard: Euro 4, Euro 5, Euro 6
NOx oxides are by-products of combustion reactions in air, and these gases are harmful to human health and the environment. The SCR catalysts have honeycomb structures, which can Selective Catalytic Reduction (SCR) of nitrogen oxides (NOx) efficiently in the presence of excess O2 atmosphere. NOx is reduced to N2 and H2O by ammonia (or using urea as precursor) with which is used as a reducing agent.
WFEC has developed SCR catalysts for meeting NOx emission control both of mobile and stationary applications. Depending on different application scene, WFEC can provide matched wash-coated products including Fe/zeolite (450~620 oC), Cu/Zeolite (190~550 oC), vanadium-based metal oxides (230~470 oC) and Mn-containing oxide catalysts (130~250 oC).
Specification of SCR (Selective Catalytic Reduction Catalyst):
| Specification | Diameter (mm) | Length (mm) | Cell Density (CPSI) | Emission Standard |
| Ø130*130 | 130 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*95 | 143.8 | 95 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*152.4 | 143.8 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*200 | 143.8 | 200 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø172*101.6 | 172 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø172*127 | 172 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190*100 | 190 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190*150 | 190 | 150 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*76.2 | 190.5 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*101.6 | 190.5 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*127 | 190.5 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*152.4 | 190.5 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø228.6*203.2 | 228.6 | 203.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*50 | 240 | 50 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*76.2 | 240 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*100 | 240 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*130 | 240 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*152.4 | 240 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*160 | 240 | 160 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*190 | 240 | 190 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*101.6 | 241.3 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*127 | 241.3 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*152.4 | 241.3 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*177.8 | 241.3 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø263*127 | 263 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*76.2 | 266.7 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*101.6 | 266.7 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*127 | 266.7 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*152.4 | 266.7 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø286*120 | 286 | 120 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø304.8*101.6 | 304.8 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø304.8*120.65 | 304.8 | 120.65 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*101.6 | 330.2 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*127 | 330.2 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*152.4 | 330.2 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*177.8 | 330.2 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Remark: | Other sizes can be customized according to customer requirements. | |||
