| Place of Origin: | Wuxi, China |
| Brand Name: | WEIFU |
| Certification: | ISO9001, IATF16949 |
| Model Number: | CNG |
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons and plywood cases |
| Delivery Time: | 30-60 days after receiving the deposit |
| Payment Terms: | T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Supply Ability: | 200,000 PCS per year |
| Product Name: | Cummins Cng Catalyst | Material: | Ceramic |
|---|---|---|---|
| Shape: | Round | Size: | Can Be Customized |
| Cell Density: | 300/400/600 CPSI | Application: | Natural Gas Vehicle |
| Car Model: | Universal | Emission Standard: | Euro 4/5/6 |
| Type: | Nmhc Catalyst Of Natural Gas Catalyst In Methane Combustion Honeycomb In Catalytic Converter | ||
| High Light: | Nmhc Catalyst Honeycomb,Nmhc Catalyst Of Natural Gas,catalysts for methane combustion |
||

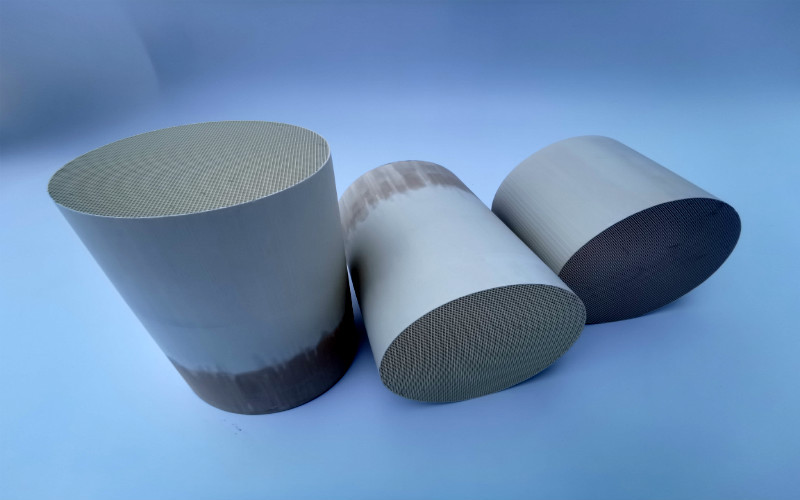

CNG Natural Gas Exhaust Catalyst Ceramic Substrate Euro 4/5/6
CNG(Natural Gas Exhaust Catalyst)
Performance of WFEC CNG catalyst:
--- Three-way window is relatively wide;
--- Conversion efficiency is high, with over 95% conversion efficiency of CH4, NMHC and NOx, and over 90% conversion efficiency for CO;
--- The ignition temperature is low, while featuring favorable hydrothermal stability and strong sulfur resistance.
With nearly 20 years of technology accumulation, we can provide customers with rich customized solutions. CNG catalyst can meet Euro-VI and China-VI regulations. CNG catalyst has been mass produced and successfully applied on more than 50 different domestic and foreign engine projects meeting China-VI emission standard.
| Specification | Diameter (mm) | Length (mm) | Cell Density (CPSI) | Emission Standard |
| Ø93*60 | 93 | 60 | 300/400/600 | Euro 4/5/6 |
| Ø143.8*76.2 | 143.8 | 76.2 | 300/400/600 | Euro 4/5/6 |
| Ø143.8*152.4 | 143.8 | 152.4 | 300/400/600 | Euro 4/5/6 |
| Ø150*100 | 150 | 100 | 300/400/600 | Euro 4/5/6 |
| Ø170*100 | 170 | 100 | 300/400/600 | Euro 4/5/6 |
| Ø190*150 | 190 | 150 | 300/400/600 | Euro 4/5/6 |
| Ø190.5*152.4 | 190.5 | 152.4 | 300/400/600 | Euro 4/5/6 |
| Ø240*76.2 | 240 | 76.2 | 300/400/600 | Euro 4/5/6 |
| Ø240*100 | 240 | 100 | 300/400/600 | Euro 4/5/6 |
| Ø266.7*76.2 | 266.7 | 76.2 | 300/400/600 | Euro 4/5/6 |
| Ø266.7*101.6 | 266.7 | 101.6 | 300/400/600 | Euro 4/5/6 |
| Ø266.7*152.4 | 266.7 | 152.4 | 300/400/600 | Euro 4/5/6 |
| Ø304.8*76.2 | 304.8 | 76.2 | 300/400/600 | Euro 4/5/6 |
| Ø304.8*152.4 | 304.8 | 152.4 | 300/400/600 | Euro 4/5/6 |
| Ø304.8*177.8 | 304.8 | 177.8 | 300/400/600 | Euro 4/5/6 |
| Ø330.2*152.4 | 330.2 | 152.4 | 300/400/600 | Euro 4/5/6 |
| Remark: | Other sizes can be customized according to customer requirements. | |||
